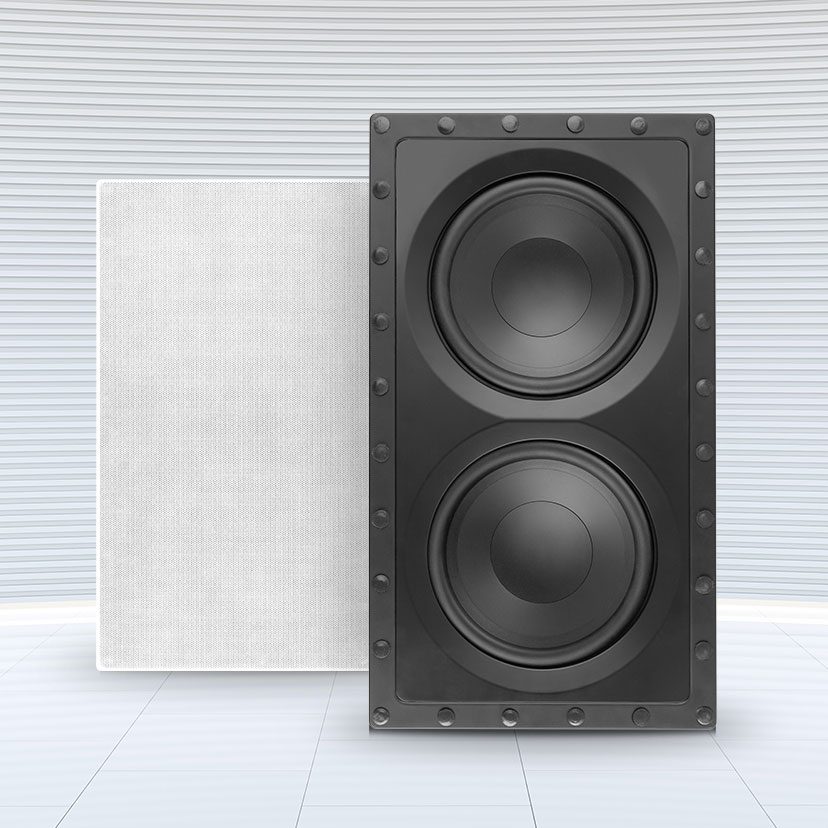

Dynamo IW-O

SKU: N/A

What’s the difference between Dynamo IW-O and IW-S? The Dynamo IW-O uses the same retrofittable size, and dual 8” woofer configuration as the IW-S, but with an open back design instead of a sealed, fire rated enclosure. The open back of Dynamo IW-O means more sound will transfer into the wall (which could cause some noise complaints from other rooms), but with the tradeoff of deeper bass extension and higher output potential than IW-S. IW-O also has an available “High Output Back Box” accessory for when a mixture of sound control and higher output is desired.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

87,000.00

MARTIN LOGAN
19 People watching this product now!

Payment Methods:

Description

Design Dual high-excursion drivers, in-wall, GRIPTM chassis/mounting bracket, and optional backbox
Frequency Response +/-3dB from 30->190 Hz
Low Frequency Extension*† 25 Hz (DIN)
Max input power 400W
Minimum Mounting Depth 3-1/2” (8.9cm)
Minimum Mounting Depth 19-1/8” x 10-3/4” x 3-1/2” (48.5cm x 27.2cm x 8.9cm)
Low Frequency Driver Two 8” (210-mm) CFPTM carbon- fiber-reinforced polypropylene cones, 1-1/2” (38-mm) voice coils, over- molded TPRTM surrounds, 1-1/2” (38- mm) 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures
Internal Volume 88L “standard” wall cavity (26L when installed in optional backbox)
Suitable Amplifier Range 50-800W
Weight 15lbs (6.8kg) each
Cut-Out Dimensions 18” x 9-5/8” (45.7cm x 24.5cm)
Finish White, paintable
