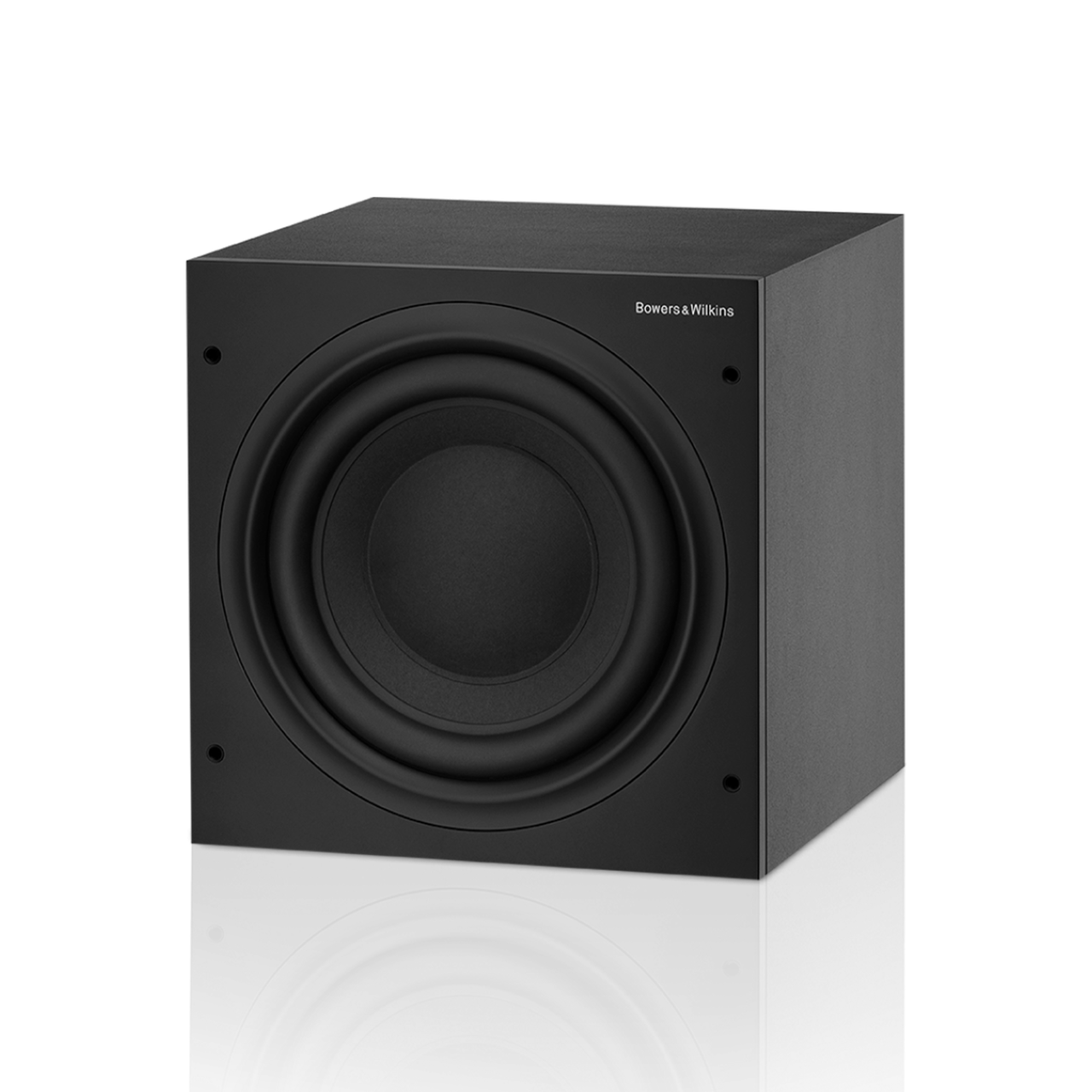

ASW610

SKU: N/A

ASW610’s long-throw 250mm driver allows it to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard amplifier keeps the compact unit running cool.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

118,000.00

Black
White
B&W
10 People watching this product now!

Payment Methods:

Description

Size & weight
Net Weight 12.5 kg (27.6 lb)
Dimensions Height: 310 mm (12.2 in) not including feet or spikes
322 mm (12.7 in) including feet
338 mm (13.3 in) including spikes
Width: 310 mm (12.2 in)
Depth: 347 mm (13.66 in) not including grilles
375 mm (14.8 in) including grilles and controls
Technical Details
Drive units ø250mm (10 in) Paper / Aramid fibre cone long-throw
Frequency response ±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)
Technical features Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Description Active closed-box subwoofer system
Frequency range -6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)
Inputs Line in (RCA Phono), Speaker in (Binding post), 12v trigger (3.5mm jack)
Low-pass filter Active 4th-order, variable cut-off frequency
Power consumption 40W / 0.5W standby
Input impedance 33kΩ
Signal / Noise >90dB
Bass extension -6dB at 20Hz (position A), -6dB at 25Hz (position B), -6dB at 30Hz (position C)
Finishes
Cabinet finishes Black, White
Grille finishes Black, Grey
